Setting up a laser projector for an event can make operators realise the reality of things. An operator turning on the unit expecting sharp 3D light streams across the room often sees only a single dot on the far wall.
The laser projector is working exactly as designed. A laser beam requires specific atmospheric conditions to become visible in mid-air.
Understanding how laser light travels, how optical mirrors steer the beam, and why atmospheric haze is necessary helps operators project clean, high-impact visual displays.
What makes a laser beam different from regular light
A laser beam is a concentrated stream of coherent light waves that travel in a single direction without spreading out. The word “laser” is an acronym standing for Light Amplification by Stimulated Emission of Radiation.
Standard light fixtures, like household bulbs or stage LED wash lights, produce incoherent light. Incoherent light waves scatter in every direction and lose intensity rapidly over short distances.
Laser diodes emit synchronized light waves that remain aligned in parallel lines. Because these light waves stay parallel, the beam keeps its energy density over long projection distances.
Pure red, green, and blue (RGB) laser diodes mix inside the projector housing to produce millions of distinct shades. Analog modulation allows operators to dim or brighten each primary diode smoothly, creating precise color mixing and smooth gradients.
How galvo scanners steer laser light to draw graphics
Laser show projectors steer a single point of light using high-speed motorized mirrors called galvanometer scanners, or galvos. One internal mirror controls horizontal movement on the X-axis, while a second mirror controls vertical movement on the Y-axis.
These tiny mirrors tilt thousands of times per second. By moving faster than the human eye can track, a single laser beam draws solid vector shapes, text, logos, and aerial patterns.
Traditional video projectors display a fixed grid of rectangular pixels, which often leaves a faint gray frame on the wall. Galvo scanners project clean vector lines with complete darkness anywhere light is not needed.
Scanning speed is measured in kilo points per second (KPPS). Higher scanning speeds allow the internal hardware to render complex graphics and text without visual flicker.
- LaserCube WiFi Series (1.2W / 2.5W): Uses galvo scanners running at 25,000 points per second at a 6-degree angle. This setup handles smooth aerial fans, liquid sky effects, and mobile DJ graphics.
- LaserCube 10W Ultra MK2: Features faster galvo scanners running at 35,000 points per second at a 7-degree angle. This higher speed renders detailed vector artwork, SVG graphics, and custom monograms at wider projection angles.
Why laser beams go invisible (and how atmospheric scattering fixes it)
A laser beam remains invisible in mid-air unless physical particles in the space bounce light back toward human eyes. Light must strike a physical surface or particle to register on the retina.
When a laser shines across a clean room, light passes through clear air without hitting solid matter. The beam travels silently through open space until it strikes a wall, creating a single visible target point.

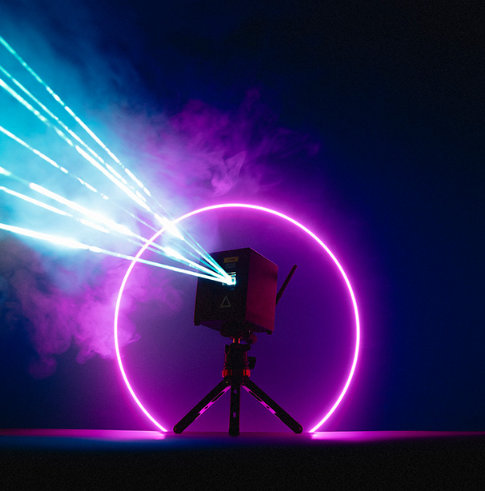

To reveal 3D beams in mid-air, operators introduce a light mist into the environment. Microscopic water droplets in the air catch passing light, scattering a portion of the beam toward the audience.
Using a compact fogger, such as the handheld Nano Fogger, provides the light haze needed to reveal full aerial beams. A light haze makes 3D tunnels, sheets, and overhead waves visible without filling the venue with dense smoke.
How output power and venue lighting impact beam intensity
Beam visibility across long projection distances depends on diode output power, ambient room lighting, and venue size. Higher wattage allows laser beams to stay sharp and visible in larger spaces with brighter ambient light.
The human eye senses green light (520nm wavelength) more easily than red or blue light. Because human eyes are naturally sensitive to green wavelengths, a green beam looks significantly brighter than a red beam of equal power.
Selecting the right hardware configuration ensures proper beam visibility for the intended event size:
- Small to Medium Venues: The battery-powered LaserCube 1.2W WiFi and LaserCube 2.5W WiFi models offer up to 3 hours of wireless operation for mobile setups and intimate venues.
- Large Venues and Outdoor Shows: The flagship LaserCube 10W Ultra MK2 delivers 10,000 milliwatts of power and 3 to 4 hours of battery life to project dense beams across large stage distances.
High-power laser displays require careful attention to safety protocols. Projectors must be mounted securely on heavy-duty tripods, and beams must stay at least 3 meters (10 feet) above the floor wherever people may be, and the beam block must be set so nothing scans into audience areas.
Operators use control software like LaserOS to set safety zones over sensitive spots. Inside a keep-out zone the laser power is reduced according to the attenuation setting (100% means fully blanked), which keeps beams off camera sensors, projectors or screens. A zone never protects people: it works on top of the beam block and the 3 m rule, never instead of them.
Wrapping Up
A laser beam is a concentrated stream of coherent light that can be steered rapidly across open space using galvo scanners. While surface graphics show up on solid walls in clean air, creating 3D aerial beam displays requires airborne particles from haze or fog.
Ready to explore portable RGB laser systems for your next event? Visit the official LaserCube product page to compare models, accessories, and complete bundles.
Frequently Asked Questions (FAQs)
Q01How do laser beams work?
Laser beams work through a process called Light Amplification by Stimulated Emission of Radiation (LASER). Unlike regular light bulbs that scatter light in all directions, lasers produce a concentrated beam of light waves traveling in the same direction.
The process begins when energy excites atoms in a laser medium. As these atoms return to their normal state, they release photons. These photons bounce between mirrors inside the laser device, creating more identical photons.
One mirror is partially transparent, allowing some light to escape as the laser beam. This creates a coherent light beam where all waves align perfectly.
Q02What is a laser beam made of?
A laser beam consists of photons, which are particles of light energy. Unlike ordinary light, laser photons have the same wavelength and travel in the same direction.
These photons are synchronized, creating what scientists call "coherent light." This coherence gives laser beams their focused intensity and distinctive properties.
The specific wavelength of the photons depends on the type of laser. Some lasers produce visible red light, while others create invisible infrared or ultraviolet light.
Q03What is the difference between a laser beam and an LED light beam?
A laser beam uses coherent light waves that move in synchronized parallel paths. This alignment prevents the beam from spreading out over distance. LED fixtures produce incoherent light waves that travel in multiple directions, causing the light beam to widen and dim rapidly.
Q04How fast is laser beam?
Laser beams travel at the speed of light, which is approximately 186,282 miles per second (299,792 kilometers per second) in a vacuum. This incredible speed makes lasers useful for precise timing applications.
In different materials like glass or water, laser light slows down slightly. However, it still moves faster than almost anything else in the universe.
The speed remains constant regardless of the laser's color or power level.
Q05How far a laser beam can travel?
In theory, a laser beam can travel infinitely far in space since there's nothing to block or absorb it. The Apollo missions proved this by placing reflectors on the moon that still bounce laser beams back to Earth today.
In practical terms on Earth, atmospheric conditions limit laser distance. Dust, moisture, and air molecules scatter and absorb the light.
High-powered lasers can travel many miles, with some military and research lasers capable of reaching targets over 100 miles away under ideal conditions.
Q06What are the primary applications of lasers in various industries?
In medicine, lasers perform precise surgeries, remove tattoos, and correct vision problems. They cut with minimal bleeding and can target specific tissues.
Manufacturing industries use lasers for cutting, welding, and engraving materials with extreme precision. They can cut through thick metal or etch delicate patterns on tiny components. Show lasers like LaserCube are made for laser shows and projection, not engraving or cutting.
In communications, laser beams carry information through fiber optic cables, enabling high-speed internet and phone services. Scientific research uses lasers for measuring, analyzing materials, and exploring quantum physics.
Q07What distinguishes different types of lasers from one another?
Lasers differ primarily by their active medium—the material that produces the laser light. Gas lasers use gases like helium-neon, solid-state lasers use crystals like ruby, and semiconductor lasers use electronic components.
Power output varies dramatically between laser types. Some medical lasers operate at just a few milliwatts, while industrial cutting lasers can reach several kilowatts.
Wavelength is another key difference. Different lasers produce different colors of visible light or invisible radiation like infrared or ultraviolet, making them suitable for specific applications.
Q08Why does a laser beam look brighter in fog than in clear air?
Fog and haze introduce tiny suspended particles into the air that catch and scatter laser light. In clear air, light travels in a direct line to the wall without bouncing toward observer eyes. Suspended water droplets act as thousands of tiny reflection points along the beam path.
Q09Can a laser beam damage digital camera sensors?
Direct exposure to a concentrated laser beam can permanently damage pixels on digital camera sensors. Keep cameras out of the projection area, and use digital Attenuation Zones in control software like LaserOS to keep the beams off camera positions, venue screens, or stage equipment.
Q10Do operators need a variance to run a laser show projector in the US?
Yes. In the US, LaserCube is certified through X-Laser, and a LaserCube bought in the USA comes with the FDA variance (issued by X-Laser). For public shows, check your local rules too. Please check the details of the variance with X-Laser.
